How to switch to SQL journal for Easymorph?

Hi,

Due to receiving constant errors informing that : "Failed to write journal events into the embedded journal database. Journal events will be accumulated in memory until the embedded journal database is available again. 'disk I/O error disk I/O error'. "
I decided to try and switch to an SQL version for the journal.
I checked the administrator options and i see that i can select sql but i have no options for server / db name:

Is there somewhere else that i should configure this or do i need to have the connection set up as odbc on the easymorph server and, in the journal configuration, only add the account and password ?
Also, if the above is correct, i can create a new database but would Easymorph create tables and such or do i need to create those manually beforehand ?

Apologies for the dumb question and thanks in advance for the patience !

Kind regards,
Mihai

Hi Mihai,

The external database should be configured as an ODBC data connection (64-bit) in Windows. Then specify the DSN name of that ODBC connection in the journal configuration (as in your screenshot).

EasyMorph Server will automatically create all the database tables needed for the journal.

Note that using an external database for the journal is only available in the Enterprise edition of EasyMorph Server. It's not available in the Team and Basic editions.

I'm curious, what causes the errors. Did you keep your Server's system folder on a network drive instead of a local drive?

Hello.

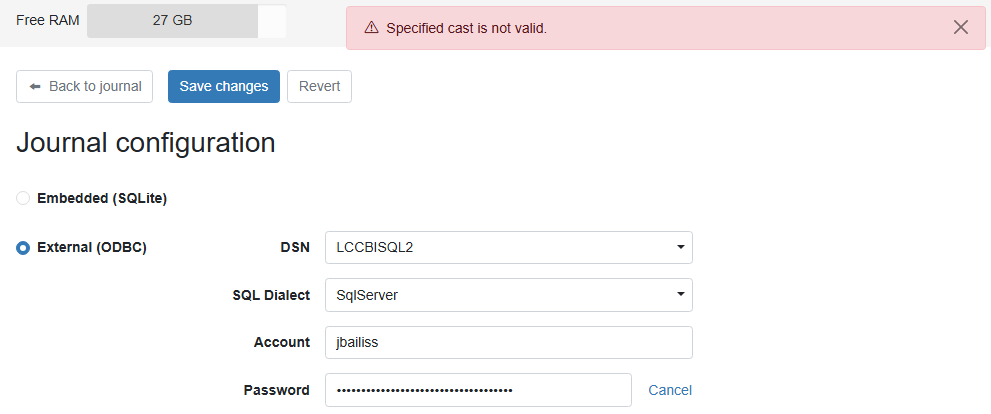

When I try to swap the Journal over to a SQL Server I get the error "Specified cast is not valid.". The ODBC connection works fine and the account being used is an administrator of the SQL Server.

Hi

Which version of the server are you using?

Please send the debug logs for that time period to our support email. They are usually located at C:\ProgramData\EasyMorph Server\Logs\Debug log unless you changed their location in the Server settings.

We’ll take a look and figure out what might be causing the issue.

In case anyone else has the same problem the solution was to use an ODBC Driver rather than the Microsoft bundled SQL Server driver.

I used ODBC Driver 17 for SQL Server. There was another issue with ODBC Driver 18 for SQL Server but that might be unique to our set-up.
